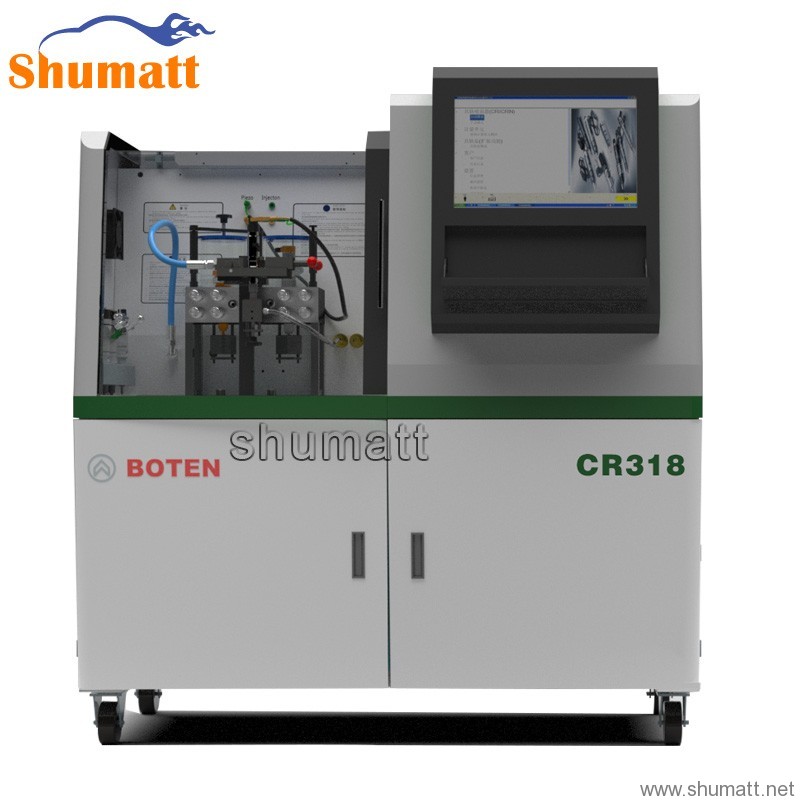

Common Rail Injector Pump Test machine CR318 Test Bench 380V AC 220V AC

Delivery Time10 working days
Size
Weight500KG
Model Number
Warranty6 months
BrandSHUMATT

SKU1

CRT258

Make an inquiry

common rail injector pump test machine cr318 test bench 380v ac 220v ac

Detailed information
FAQ
Download

Model	CR318 test bench
Main power	380V AC 220V AC(optional）
Phase	Three single（optional）
Frequncy	50Hz/60Hz
Current	30A(MAX)
Mian motor	5.5KW
Main motor rotation	0-4000 RPM/MIN
Oil motor HP/ Flow	0.19KW / 13L/MIN
Diesel motor HP /Flow	0.19KW / 13L/MIN
Control circuit voltage	DC12V/24V 350W
ECU internal voltage	0-200V DC（MAX）
Oil tank volume	18 L
Diesel Tank volume	18 L
Temperature control	Heating/Forced cooling
Max rail pressure	180MPa 240MPa（optional）
Flowmeter（injection）	Flowmeter（injection）
Weight	400KG
Outlook size net （LXWXH）	1450X940X1500
Wooden cage（LXWXH）	1550X1050X1720

Download

Tag: cr318 test bench pump test machine
